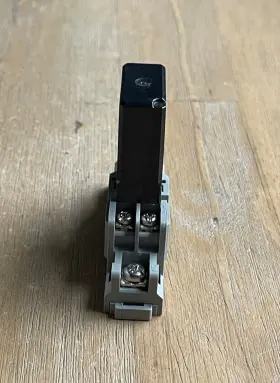

RBHB-0502 IDEC Solid Relay Pin Socket Base

Review IDEC Solid State Relay Pin 50vdc 2a Socket Base

The IDEC RBHB-0502 solid-state relay is a versatile and high-performing electrical component designed for various industrial automation applications. This model features a SH1B-05 socket base and is suitable for operating with a maximum voltage of 50VDC and a current of up to 2A. whenever needed.

The solid-state relay operates through the use of compact and reliable semiconductor components, instead of mechanical contacts found in traditional relays. This design ensures a longer operational life with minimal wear and tear, and also eliminates the inherent risks associated with traditional relay contacts such as arcing, sparking, and noise generation.

The SH1B-05 socket base is a common industrial standard, making it easily interchangeable with various makes and models of contactors and other relays. The terminals are firmly secured in place and provide clear labeling for easy identification of input and output connections.

With a compact size, the IDEC RBHB-0502 solid-state relay takes up only a minimal amount of space on control panels. Its robust design enables it to operate effectively in harsh environments, ensuring reliable operation even in the presence of vibrations, temperature fluctuations, or humidity.

Installation and setting up the relay is effortless thanks to its user-friendly design. The input voltage can be easily adjusted by using the built-in adjustable optocoupler, while the relay's various protective functions offer enhanced safety and durability.

Besides being an excellent choice for controlling electrical loads in industrial applications, the IDEC RBHB-0502 solid-state relay also provides the benefits of precise control, improved response time, and low power consumption compared to traditional relays. This makes it an optimal choice for applications requiring precise control of loads in various industries, such as automation, HVAC, lighting, and building control systems.

Overall, the IDEC RBHB-0502 solid-state relay is a cost-effective, reliable, and versatile option for handling various industrial automation tasks while delivering superior performance and extended lifespan.

The IDEC RBHB-0502 Solid State Relay (SSR) with SH1B-05 socket base, rated for 50VDC and 2A, can be a suitable choice for various industrial automation applications. Here are the pros and cons that can help you make an informed decision:

1. Solid State Technology: Compared to electromechanical relays, SSRs like the IDEC RBHB-0502 provide several advantages, including faster response times, longer life expectancy, and no mechanical wear and tear.

2. Compact Size: With dimensions of approximately 77 x 44 x 33mm (LxWxH), this relay offers a compact size, making it ideal for applications where space is limited.

3. Robust Construction: The IDEC RBHB-0502 is designed with a shielded housing, ensuring it can effectively protect against electromagnetic interference (EMI) and radio-frequency interference (RFI), providing reliable performance.

4. High Operating Temperature: This SSR can operate in temperatures ranging from -20 C to 70 C, ideal for use in harsh environmental conditions.

5. Versatile Application Usage: The IDEC RBHB-0502 can be employed in various industrial applications, including motor control, power supply monitoring, solenoid valve control, and machine tools.

1. Limited Current Capacity: The 2A current capacity of the IDEC RBHB-0502 might not be sufficient for high current applications. Applications requiring a larger current rating should consider higher power solid-state relays or contactors instead.

2. Higher Upfront Cost: SSRs, in general, have a higher upfront cost than electromechanical relays due to their more complex design and advanced technology.

3. Requires Monitoring: Since SSRs have no physical contacts, it is essential to ensure they are monitored to ensure proper operation and identify any potential failures before they lead to system downtime or bigger problems. Always follow the manufacturer's recommendation to minimize risks and optimize the lifespan of the relay.

In conclusion, the IDEC RBHB-0502 solids state relay with SH1B-05 socket base, offering advantages such as fast response times, robust construction, and EMI/RFI protection, can be a valuable investment for applications requiring compact size, reliable operation, and a wide temperature range. However, its relatively higher upfront cost and limited current capacity should be taken into consideration when making a final decision for a specific project. Ultimately, if the application s requirements align with the relay s capabilities, it is a solid choice for industrial automation applications.

Details:

Idec RBHB-0502 solid state relay 5 pin 50vdc 2a with SH1B-05 socket base.

specifications genpurrelays:

• brand: Idec
• mpn: Rbhb-0502
• part type: Pin Socket
• number of pins: 5-pin
• coil voltage: 41-50 V
• application: Commercial, Control Equipment Panels, Industrial

shipping genpurrelays:

• transit: 4-10 days
• class: standard
• service: usps ground advantage
• type: calculated
• carrier: usps

returns genpurrelays:

• time: 30 days
• method: money back
• policy: returns accepted
• paid by: buyer

seller genpurrelays:

• # reviews: 2089
• city: troy, ohio
• rating: 100.0%

offer genpurrelays:

• in stock #: 5
• sold #: 26
• prices: $10.00–$100.00
• item condition:
  • New – Open box
  • Used
• best offers: true
• options: ship-to-home
• availability: in stock
• started: november 26, 2024

general genpurrelays:

• category: Business & Industrial > Electrical Equipment Supplies > General Purpose Relays
