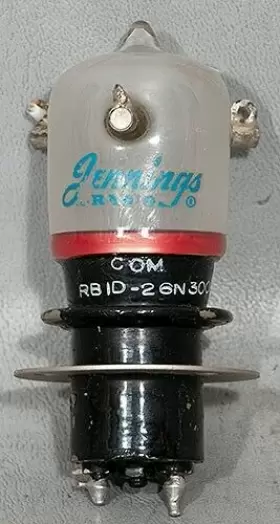

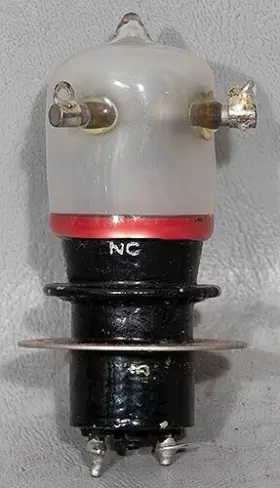

RB1D-26N300 JENNINGS Spdt High Voltage Vacuum Relay
| Brand | JENNINGS |
|---|---|
| Manufacturer Part Number | RB1D-26N300 |
| Current Type | AC/DC |
| Type | POWER RELAY |
| Maximum Amperage | 15 A |
| Contact Configuration | SPDT |
| Coil Voltage | 26.5 VDC |
| Application | HIGH VOLTAGE |
Review JENNINGS Spdt Kv High Voltage Vacuum Relay
The Jennings RB1D-26N300 SPDT 12/15 High Voltage Vacuum Relay is a reliable and high-performing electrical component designed for various applications that require reliable switching of high voltage currents. This vacuum relay is a single-pole double-throw (SPDT) type, which means it can switch one circuit to one of two other circuits.
The RB1D-26N300 is rated for a nominal operating voltage of 12 kV and a maximum operating voltage of 15 kV, making it suitable for use in high voltage power systems. Its contact rating is 300 A, ensuring it can handle substantial currents without overheating or failing. The contact material used in this relay is silver-alloy, which provides excellent conductivity and ensures long-term reliability.
The vacuum relay is housed in an insulating and robust borosilicate glass enclosure, which is resistant to thermal shock, vibration, and high-voltage arcing. This enclosure ensures the longevity of the relay and provides a high degree of safety in operation. The RB1D-26N300 also features a metal base with a mounting flange, allowing for easy installation in a variety of applications.
The Jennings RB1D-26N300 SPDT 12/15 High Voltage Vacuum Relay is a versatile and reliable electrical component, suitable for use in power stations, substations, and other high voltage electrical systems. Its high voltage and current rating, combined with its robust construction, makes it an excellent choice for applications that require reliable switching of high voltage currents.
Pros of buying Jennings RB1D-26N300 SPDT 12/15 High Voltage Vacuum Relay:1. Reliability: Vacuum relays like the Jennings RB1D-26N300 are known for their high reliability and long service life, making them a durable choice for high voltage applications.
2. High Voltage Capability: With a voltage rating of 300VAC, this relay can handle high voltage loads, making it suitable for various industrial and commercial applications.
3. SPDT (Single Pole Double Throw) Functionality: The SPDT configuration allows for multiple switching options, making it a versatile choice for various control systems.
4. Compact Size: Despite its high voltage capability, the Jennings RB1D-26N300 is relatively compact, saving space in control panels and other applications.
Cons of buying Jennings RB1D-26N300 SPDT 12/15 High Voltage Vacuum Relay:1. Price: Vacuum relays like the Jennings RB1D-26N300 can be more expensive compared to other types of relays, resulting in a higher upfront cost.
2. Complexity: Vacuum relays can be more complex to operate and maintain compared to other types of relays, requiring specialized knowledge and tools.
3. Limited Availability: Due to their specialized nature, vacuum relays like the Jennings RB1D-26N300 might not be as widely available as other types of relays, making it more challenging to find replacements or service providers.
Conclusion:The Jennings RB1D-26N300 SPDT 12/15 High Voltage Vacuum Relay is a reliable and versatile choice for high voltage applications. Its high voltage capability, SPDT functionality, and compact size make it a suitable option for various control systems. However, its higher cost, complexity, and limited availability are potential drawbacks that should be considered before making a purchase. Ultimately, the decision to buy the Jennings RB1D-26N300 SPDT 12/15 High Voltage Vacuum Relay will depend on the specific requirements and constraints of the application.
Recommendation:If the high voltage capability, reliability, and versatility of the Jennings RB1D-26N300 SPDT 12/15 High Voltage Vacuum Relay are important for your application, and you have the necessary knowledge and resources to operate and maintain it, then it could be a good investment. However, if cost, complexity, or availability are significant concerns, other types of relays may be more suitable for your needs. It is recommended to carefully evaluate your application requirements and consult with a reliable vendor or technical expert before making a decision.
Details:
Contact capacitance: 0.5mm FD, capacitance to ground: 1.5 operating time: 18 ms max. Release time: 8 ms max. The unit is a pull from piece of equipment that had to be scrapped due contractual obligations. Jennings RB1D-26N300 spdt 12 kv 15 a high voltage vacuum relay, comes with what you see in the pictures.
It is guaranteed to work. Specifications: contact arrangement: spdt, rated operating voltage : dc or 60 Hz: 12 kv peak, 2.5 MHz: 10 16 8 test voltage - 18 continuous current RMS: 15 a, 6 interrupting rating for restive load: kw not to exceed 3 amps kv, resistance: .0127 ohms max.
