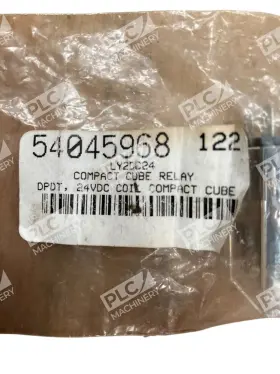

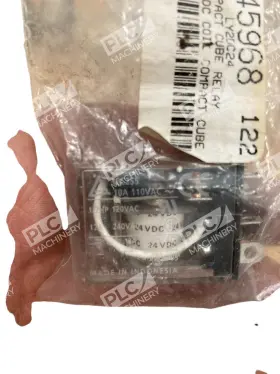

LY2-DC24 OMRON Coil Contact Pin Plug Terminal

Review OMRON 10a 24vdc Coil 110vac Contact Pin Plug-in Terminal Ly2dc24

The Omron Ly2-DC24 10A 24VDC coil is a versatile and reliable electric relay designed for various automation applications. This plug-in terminal model features a 24VDC coil voltage and a maximum current capacity of 10 Amperes, making it suitable for use with low-voltage control systems.

The Ly2DC24 is a compact and space-saving design, measuring approximately 1.2 inches (30mm) in length, 1.2 inches (30mm) in width, and 0.6 inches (15mm) in height. It includes a single-pole double-throw (SPDT) switch mechanism, which allows for the normally open (NO) contact to be engaged when the coil is energized, and the normally closed (NC) contact to be disengaged during the same time.

The Omron Ly2-DC24 contact pins on this relay are designed to easily accommodate standard plug-in terminals, enabling quick and efficient wiring for various connection configurations. Its insulation material boasts an exceptional dielectric strength, providing reliable performance even in demanding industrial environments.

The Ly2DC24 features a rupture-proof silver-plated contact design that offers excellent conductivity and robustness against fatigue and wear. It ensures secure contact transfer for proper electrical flow and helps prevent arcing and welding between contacts, delivering consistent switching speed and reliability.

This 110VAC contact pin plug-in terminal type relay caters to a wide range of applications in various industries, including industrial control, automation systems, security systems, and telecommunications. The Omron Ly2-DC24 10A 24VDC coil is an indispensable component for controlling electrical loads with confidence, providing reliable and efficient switching performance for your system needs.

Pros and Cons of buying a Omron LY2-DC24 10A 24VDC Coil with 110VAC Contact Pin Plug-in Terminal (LY2DC24)

1. **Reliability and Durability**: Omron is a reputable manufacturer known for producing high-quality electrical components. The LY2-DC24 coil is designed to last, with a 10A current capacity and a 24VDC operating voltage.

2. ** versatility**: This coil can be used in various applications, including motor control, solenoid valve actuation, and various industrial automation projects, due to its compatibility with 110VAC contact pin plug-in terminals.

3. **Easy Installation**: The LY2-DC24's plug-in design simplifies installation, making it a popular choice for industrial automation applications where quick setup is crucial.

4. **Cost-Effective**: The LY2-DC24 is a cost-effective solution for various automation and control applications because it eliminates the need for custom wiring or complex installation processes.

5. **Safety**: The use of 110VAC contact pin plug-in terminals increases safety since they eliminate the need for direct contact with the electrical connections, reducing the chance of accidents during installation or operation.

a. Limited Compatibility: Since it is a DC coil with a 24VDC operating voltage, it might not be suitable for applications requiring AC voltage or higher voltage levels.

7. **Conclusion**: The Omron LY2-DC24 10A 24VDC coil with 110VAC contact pin plug-in terminal (LY2DC24) offers several benefits, including reliability, versatility, easy installation, cost-effectiveness, and enhanced safety. Its plug-in design simplifies installation while reducing the risk of accidents, making it ideal for various automation and control applications requiring a 10A 24VDC coil. However, the coil's limited compatibility to 24VDC and 110VAC voltage levels could be a potential drawback.

8. **Recommendation**: If your application requires a 10A 24VDC coil, the Omron LY2-DC24 with 110VAC contact pin plug-in terminal meets a wide range of automation and control requirements. However, ensure that your application complies with its voltage requirements before making a purchase. If higher voltage levels or AC voltage are needed, consider consulting an electrical engineer or an industry expert to determine the most suitable solution for your specific use case.

Details:

It has 11 pins, 3 poles, and a maximum amperage of 10a. The contact current rating is 10a, suitable for various electrical applications. This is an Omron LY2-DC24 relay with a 12v dc coil voltage rating.

specifications genpurrelays:

• brand: Omron
• mpn: Ly2-dc24
• part type: Coil Pin Plug
• maximum amperage: 10a
• coil voltage rating: 12 Vdc
• modified item: No
• current type: Ac/dc
• number of pins: 11-pin
• control voltage: 12v Dc
• country/region of manufacture: Japan
