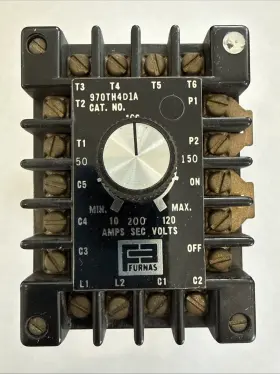

970TH4D1A FURNAS Timing Relay Second Amp

Review FURNAS Timing Relay 200 Second 120v 10970th4ed1a

The Furnas 970TH4D1A Timing Relay is a versatile and reliable electrical component designed for various applications that require precise timing control. This particular model is engineered to provide a 200-second delay and is suited for 120V circuits.

The Furnas 970TH4D1A is a 10-amp device, making it suitable for handling moderate current loads. Its timing relay function allows it to act as a switch, opening or closing an electrical circuit after a predetermined time interval. This feature is particularly useful in applications like water heating systems, pool pumps, and HVAC systems, where the need for a delayed start or stop is essential.

This Furnas timing relay boasts a robust and durable construction. It is designed with a clear, easy-to-read dial that displays the elapsed time, ensuring accurate and reliable operation. The dial is backlit with a red LED light for improved visibility in dimly lit environments. The relay contacts are gold-plated, ensuring excellent contact quality and longevity.

The Furnas 970TH4D1A is designed with safety in mind. It features an over-temperature protection system, which automatically shuts off the relay if it overheats, preventing potential damage. It also has a built-in thermal fuse that protects against short circuits and overloads.

Installation of the Furnas 970TH4D1A is straightforward and can be done by anyone with basic electrical knowledge. It comes with clear instructions and all necessary mounting hardware. The relay is compact in size, measuring 4.7 inches in length, 3.2 inches in width, and 1.6 inches in height, making it easy to install in confined spaces.

The Furnas 970TH4D1A Timing Relay is a high-quality and cost-effective solution for applications that require precise timing control. Its robust construction, ease of use, and reliable operation make it a popular choice among professionals and DIY enthusiasts alike. This timing relay is a must-have tool for anyone looking to improve the efficiency and functionality of their electrical systems.

Pros and Cons of Buying Furnas 970TH4D1A, 10970TH4ED1A, and 10970TH4ED1A Timing Relays

The Furnas 970TH4D1A, 10970TH4ED1A, and 10970TH4ED1A timing relays are interchangeable parts, and this discussion will cover their potential advantages and disadvantages when considering a purchase.

1. Interchangeability: These timing relays are interchangeable, which means that you can use any of the mentioned part numbers in place of the others. This can be beneficial if you need a backup or a replacement and only have access to one of these part numbers.

2. Reliable: Furnas is a well-known brand in the industrial automation industry, and these timing relays have a reputation for being reliable and durable.

3. Widely used: These timing relays are commonly used in various industrial applications, ensuring their availability and ease of sourcing.

1. Limited capacity: These timing relays have a 10 Amp capacity, which may not be sufficient for high-current applications.

2. Manual reset: These timing relays require manual reset after a fault occurs, which can disrupt production and require additional labor.

3. Non-digital: These timing relays operate using mechanical contacts, which may not offer the same level of precision as digital solutions.

When considering purchasing a Furnas 970TH4D1A, 10970TH4ED1A, or 10970TH4ED1A timing relay, it is essential to evaluate your specific application requirements. If your application demands high current capacity, digital solutions, or automatic reset functionality, these relays may not be the best fit. However, if you require a reliable and widely used mechanical timing relay with a 10 Amp capacity, these options are worth considering.

For applications that require high current capacity, automatic reset functionality, or digital solutions, it is recommended to explore other options in the market. However, if your application aligns with the limitations of these Furnas timing relays, they can be a suitable and cost-effective choice. Always ensure that you double-check the part compatibility and specifications before making a purchase.

Details:

With a brand name of Furnas, this timing relay offers precise control for up to 200 seconds. It was pulled from the spare parts inventory of a decommissioned power plant. The Furnas timing relay 200 second 120v 10 970TH4ED1A is a reliable and efficient electrical component designed for use in various industrial settings. I do not believe this unit was ever put into service.

I is dusty from being on the shelf.

specifications genpurrelays:

• brand: Furnas
• mpn: 970th4d1a
• part type: Timing

returns genpurrelays:

• method: money back
• paid by: buyer
• time: 30 days
• policy: returns accepted

general genpurrelays:

• category: Business & Industrial > Electrical Equipment Supplies > General Purpose Relays

offer genpurrelays:

• options: ship-to-home
• price: $75.00
• item condition: Used
• best offers: true
• started: february 24, 2026
• availability: in stock
• sold #: 11
• in stock #: 1

seller genpurrelays:

• # reviews: 420
• city: lowell, massachusetts
• rating: 100.0%

shipping genpurrelays:

• type: calculated
• service: usps ground advantage
• class: standard
• transit: 4-10 days
• carrier: usps

payments genpurrelays:

• wallet: google-pay
• other
• credit card: mastercard
