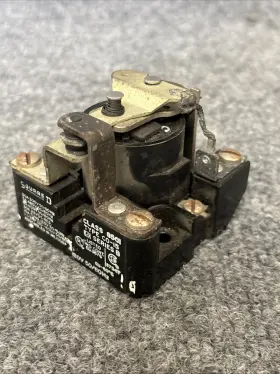

8501C015 SQUARE D Power Relay

Review SQUARE D Square8501c015 120v 50/60hz Ser Heavy Duty Power Relay Used

The Square D 8501C015 / 8501CO15 120V 50/60Hz Power Relay is a versatile and reliable electrical component designed for controlling AC power circuits. This model is part of Square D's popular 850 series, which is known for its compact size and robust construction.

The 8501C015 / 8501CO15 is a single-pole double-throw (SPDT) relay with a coil voltage rating of 120V AC and a current capacity of 5 amps at 50/60Hz. It is suitable for use in a wide range of applications, including industrial automation, HVAC systems, and electrical distribution panels.

The relay features a silver-plated contact system that ensures reliable and long-lasting performance. The contacts are rated for 10,000 cycles at full load, ensuring that they can handle heavy usage without wearing out prematurely. The relay also includes a built-in overload protection feature, which helps prevent damage to the coil in case of overcurrent conditions.

The 8501C015 / 8501CO15 has a compact size of just 1.34 inches by 1.7 inches by 1.1 inches (LxWxH), making it easy to install in tight spaces. It also includes mounting holes for easy attachment to a DIN rail or other mounting surfaces. The relay's terminal blocks are color-coded and numbered for easy identification of input and output connections.

The 8501C015 / 8501CO15 is designed to meet the rigorous requirements of UL and CSA standards, ensuring that it meets the highest safety and performance standards. It also includes a built-in coil fuse, which helps protect against coil damage in case of short circuits or other faults.

In summary, the Square D 8501C015 / 8501CO15 120V 50/60Hz Power Relay is a versatile and reliable electrical component that is ideal for controlling AC power circuits in a variety of industrial and commercial applications. Its compact size, robust construction, and reliable contact system make it a popular choice for electrical engineers and technicians. With its built-in overload protection and compliance with UL and CSA standards, this relay offers peace of mind and reliable performance for years to come.

Pros and Cons of Buying Square D 8501C015 8501CO15 120V 50/60Hz Power Relay

The Square D 8501C015 8501CO15 120V 50/60Hz Power Relay is a common choice for automating electrical systems due to its reliability and versatility. Let's examine the advantages and disadvantages of purchasing this relay.

1. Robust Design: This relay is built to last, featuring a rugged construction that can withstand harsh environments. It is suitable for industrial applications where the relay may be subjected to high temperatures, vibrations, and other challenging conditions.

2. Versatility: The 8501C015 and 8501CO15 relays are available in various configurations, allowing users to choose the best option for their specific application. They provide both normally open (NO) and normally closed (NC) contacts, making them ideal for various control schemes.

3. Safety: Square D relays are known for their safety features, which include overload protection and short circuit protection. These features help prevent damage to the relay and ensure the safety of the users and the electrical system.

4. Easy Installation: The relays have a simple design and can be easily installed with minimal wiring requirements. They can be mounted in a variety of orientations, making them a flexible choice for different installations.

1. Limited Load Capacity: The 8501C015 and 8501CO15 relays have a relatively low load capacity of 10A. This might not be sufficient for high-current applications, and users may need to consider other options if their requirements exceed this limit.

2. Limited Operating Temperature Range: These relays are designed to operate within a temperature range of -40 C to 85 C. While this covers most common temperature environments, users operating in extreme temperatures may need to consider alternative solutions.

The Square D 8501C015 8501CO15 120V 50/60Hz Power Relay offers several advantages such as robust design, versatility, safety, and easy installation. However, it has some limitations, including a relatively low load capacity and a limited operating temperature range. When considering purchasing this relay, users should carefully evaluate their specific application requirements to ensure it meets their needs.

For applications where the load capacity and operating temperature requirements exceed the capabilities of the 8501C015 and 8501CO15 relays, users may consider other Square D relays with higher load capacities or broader temperature ranges. Alternatively, they could explore options from other manufacturers to find a relay that better fits their requirements. Ultimately, the choice depends on the specific application and the user's preferences.
