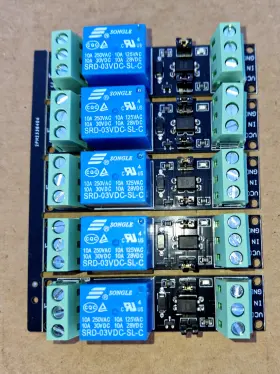

724545020568 TEYLETEN ROBOT Channel Optocoupler Relay High

Review TEYLETEN ROBOT Dc Channel Optocoupler 3v/3.3v Relay High Level Driver Module Isolated

The Teyleten Robotics Channel Optocoupler 3V/3.3V Relay High Level Driver Module Isolated (Model Number: 724545020568) is an essential electronic component for building automated systems, particularly those requiring the isolation of control signals from power circuits. This optocoupler relay driver module ensures safe and effective operation by maintaining electrical isolation between the control and load circuits.

This optocoupler driver is designed to work with 3V or 3.3V control signals and can drive a single-pole double-throw (SPDT) relay with a maximum coil resistance of 50 ohms and a maximum coil inductance of 60 mH. The module utilizes an optocoupler to transmit the control signal optically, thereby eliminating the need for a direct electrical connection between the control and load circuits. This arrangement significantly reduces the risk of electrical interference, short circuits, and other potential issues that might arise due to direct electrical contact.

The Teyleten 724545020568 module features a compact size of 36.5mm x 24.5mm x 10mm (LxWxH), making it an excellent choice for space-constrained applications. The module also comes with a convenient mounting hole pattern that allows easy integration into a wide range of projects.

The module is compatible with various microcontrollers, microprocessors, and other digital control systems. Its simple wiring and straightforward operation make it an accessible option for both beginners and experienced electronics enthusiasts.

In summary, the Teyleten Robotics Channel Optocoupler 3V/3.3V Relay High Level Driver Module Isolated (Model Number: 724545020568) offers reliable electrical isolation, compact size, and ease of use, making it an indispensable component for various automated projects and systems.

Pros and Cons of Buying a Teyleten Robot 724545020568 Channel Optocoupler 3V/3.3V Relay High Level Driver Module Isolated

1. **Isolation**: The primary advantage of the Teyleten 724545020568 optocoupler relay driver is its isolation feature. This module allows the control signal and the power signal to be kept separate, preventing electrical noise from interfering with the control circuit and ensuring the safety of operators.

2. **Easy to Use**: The optocoupler driver module is easy to use as it does not require any external components for protection diodes and snubbers, making the setup process simple and straightforward.

3. **Versatility**: This module can be used with various types of relays and can handle a wide range of currents and voltages, making it a versatile option for different applications.

4. **Compact Size**: The Teyleten 724545020568 is a compact module, making it an ideal choice for space-constrained projects or applications where size is a concern.

5. **Reliable**: The module is known for its reliability and durability, ensuring smooth operation and long-term usage.

1. **Limited Current Capacity**: The Teyleten 724545020568 optocoupler driver module has a limited current capacity, making it unsuitable for applications that require high currents.

2. **Cost**: This module may be more expensive compared to other relay driver options without isolation, which could be a deterrent for some buyers on a tight budget.

3. **Limited Input Voltage**: The module has a limited input voltage range, and operating it outside of this range could potentially damage the device.

**Conclusion**: The Teyleten 724545020568 channel optocoupler 3V/3.3V relay high level driver module isolated offers several advantages, such as isolation, ease of use, versatility, compact size, and reliability. However, it has some limitations, including limited current capacity, cost, and input voltage range. If isolation is a critical requirement for your project and the limitations are acceptable, this module could be an excellent choice.

**Recommendation**: If you require isolation for your relay driver application and have a budget for it, the Teyleten 724545020568 optocoupler driver module is a solid choice. However, if cost is a major concern or you have high current requirements, you may want to explore other options or consider an optocoupler with a higher current capacity.

Details:

specifications genpurrelays:

• brand: Teyleten Robot
• part type: Driver Module
• upc: 724545020568
• package dimensions lxwxh: 5.47x3.62x0.67 Inches
• weight: 0.11 Pounds

general genpurrelays:

• category: Business & Industrial > Electrical Equipment Supplies > General Purpose Relays

seller genpurrelays:

• city: phoenix, arizona
• # reviews: 4823
• rating: 99.2%

offer genpurrelays:

• started: march 8, 2025
• prices: $20.87–$23.05
• item condition: New
• availability: in stock
• options: ship-to-home
• sold #: 26

returns genpurrelays:

• policy: no returns

payments genpurrelays:

• other
• wallet: paypal
• credit card: diners-club

shipping genpurrelays:

• type: fixed
• transit: 4-10 days
• class: standard
• service: standard
