70120F AGASTAT Delay Relay Coil

Review AGASTAT Time Delay Relay 24vdc Coil 1-10 Minutes 120/240vac 1/4 Hp

The Agastat 70120F Delay Relay is a versatile and reliable electrical component, designed for various applications that require a delay in the relay operation. This delay relay operates on a 24VDC coil, making it suitable for a wide range of power sources.

The Agastat 70120F is a 2-form-C relay, which means it has two contacts that are normally open (NO) and can be switched to either a normally closed (NC) or common (COM) position. The delay time for this relay can be adjusted between 1 and 10 seconds, providing you with the precise control you need for your application.

This relay is rated for 120VAC and 240VAC, making it suitable for use in both single-phase and three-phase AC power systems. It can handle a maximum current of 10A, ensuring it can handle the demands of most low-power applications. The relay is also rated for a maximum operating temperature of 85 C (185 F), ensuring it can operate reliably in various environments.

The Agastat 70120F Delay Relay is built using high-quality materials and components, ensuring it provides reliable operation over an extended period. It features a robust, die-cast aluminum housing that provides protection against dust and moisture, making it suitable for use in a variety of environments. The relay also features a silicone rubber seal around the terminals to further protect against moisture and debris.

In conclusion, the Agastat 70120F Delay Relay is an excellent choice for any application that requires a delay in the relay operation. Its adjustable delay time, wide voltage range, and high current handling capability make it a versatile and reliable component. Its robust construction and protection against moisture and dust ensure it can operate reliably in various environments.

1. Versatility: The Agastat 70120F delay relay is designed to work with both 120V and 240V AC power, making it suitable for a wide range of applications.

2. Wide Coil Range: The relay has a coil voltage of 24VDC, but it can control contacts rated for 120VAC or 240VAC. This means it can handle a variety of loads.

3. Adjustable Delay: The Agastat 70120F allows for a delay time adjustment within the range of 1-10 seconds. This feature is useful in applications where a precise delay is required.

4. Reliability: Agastat is a trusted brand known for its durable and reliable products, ensuring long-term use.

1. Limited Current Rating: While the relay can handle a wide range of voltage and loads, its current rating is relatively low at 1A. This might limit its use in applications requiring higher current.

2. Complexity: The adjustable delay feature and wide range of applications make the Agastat 70120F a more complex device to use compared to simpler relays.

The Agastat 70120F delay relay is a versatile and reliable option for applications requiring precise delay control. Its wide voltage and load range make it suitable for various projects. However, its lower current rating and complexity may limit its use in certain applications. If your project requires higher current, you may want to consider other options with higher current ratings.

If the requirements of your project match the capabilities of the Agastat 70120F delay relay, it is a recommended choice for its reliability and adjustable delay feature. However, ensure to consider the lower current rating and potential complexity before making a final decision.

Details:

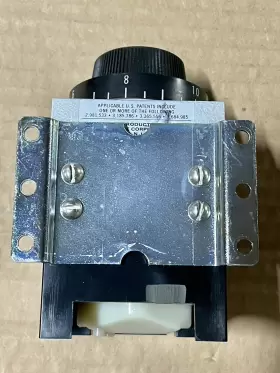

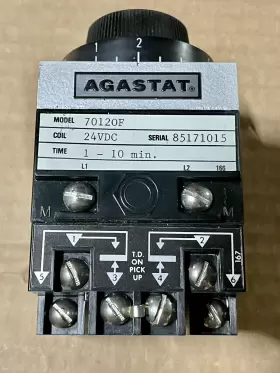

This is used in good working order and several are available. Also has a 600vac contact rating 5a. They are made to base mount on panel surfaces. This is model # 70120F and has a 1 to 10 minute timer adjustment.

The coil is 24vdc rated and the contacts can be used at up to 30vdc 30 amps or for 120/240vac 10 amps 1/4hp. These quality relays are ul listed with all screw terminal h/w included. You are viewing an Agastat timing relay with two contact sets.

specifications genpurrelays:

• brand: Agastat
• mpn: 70120f
• mounting style: Panel
• maximum amperage: 10a 240vac
• current rating: 10a Ac Contacts
• item length: 3 In
• current type: Dc Coil With Ac Contacts
• type: Time Delay Relay
• item height: 4.5
• coil voltage: 24vdc
• contact material: Copper
• features: Timer
• country/region of manufacture: United States
• application: Commercial, Control Equipment Panels, Data Centers, Industrial
• power: 1/4hp
