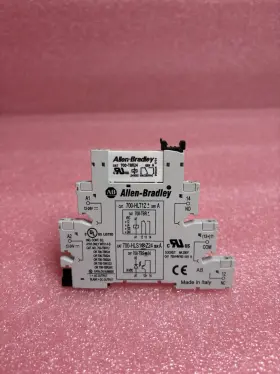

700-HLT1Z24X ALLEN-BRADLEY Relay Solid Spdt

Review ALLEN-BRADLEY Relay 24vdc Solid State Spdt New-open

The Allen-Bradley 700-HLT1Z24X is a 24VDC, solid-state, single-pole, double-throw (SPDT) relay with normally open (NO) contacts. This versatile relay is designed for use in various industrial automation applications, providing reliable and efficient switching functions.

The 700-HLT1Z24X is a compact device, measuring 1.57 inches long, 1.12 inches wide, and 0.63 inches high, making it suitable for space-constrained installations. It comes in a rugged plastic housing, rated for operation in temperatures ranging from -22 F to 140 F (-30 C to 60 C), ensuring reliable performance in harsh environments.

This relay features a solid-state design, which offers several advantages over traditional electromechanical relays. Solid-state relays don't contain moving parts, resulting in longer lifespan, reduced wear, and lower power consumption. They also provide faster switching times, typically in the range of microseconds, making them ideal for applications requiring quick response times.

The 700-HLT1Z24X has a maximum current rating of 1.25 Amps and a maximum voltage rating of 24VDC. Its contacts have a contact capacity of up to 10,000 cycles, ensuring long-lasting performance in applications with frequent switching requirements. The contacts are also gold-plated to ensure superior conductivity and minimize contact resistance, resulting in improved contact life and reliability.

The relay is easy to install and integrate into control systems, with a screw terminal configuration that accepts wires up to 12 AWG. The terminal screws are captive, reducing the risk of losing screws during installation. Additionally, the relay comes with a clear, removable protective cover that shields the terminals when not in use, providing an additional layer of protection against dust and other contaminants.

The Allen-Bradley 700-HLT1Z24X is an excellent choice for applications where a dependable, compact, and energy-efficient SPDT relay with NO contacts is required. It is suitable for use in various industrial automation systems, such as process control, machine automation, and power distribution applications.

The Allen-Bradley 700-HLT1Z24X is a 24VDC solid state, single-pole, double-throw (SPDT) relay with normally open contacts. Here are some pros and cons that may help you make an informed decision about purchasing this relay:

1. Solid State Relay (SSR): An SSR operates without mechanical contacts, resulting in longer life, reduced wear, and less noise compared to traditional relays.

2. 24VDC Input: This relay's input voltage requirement is within the range of many industrial power supplies, making it a versatile choice for various applications.

3. Normally Open Contacts: The normally open contacts ensure that the relay does not conduct current when not activated, allowing for precise control over the connected circuits.

4. RoHS Compliant: This relay is compliant with the European Union's Restriction of Hazardous Substances Directive, making it an environmentally friendly choice.

5. UL Recognized: The Allen-Bradley 700-HLT1Z24X is UL recognized, ensuring that it meets the safety and performance requirements set by Underwriters Laboratories.

1. Higher Upfront Cost: Compared to traditional relays, solid state relays may have a higher upfront cost. However, the longer lifespan and reduced maintenance requirements may offset the initial investment over time.

2. Limited Current Capacity: The maximum current capacity for this relay is 2.5 Amps, which may not be sufficient for heavy-duty applications. It's essential to verify that the relay can handle the required current before making a purchase.

In conclusion, the Allen-Bradley 700-HLT1Z24X relay offers numerous benefits, such as long-lasting solid-state technology, a wide input voltage range, and UL recognition. However, its higher upfront cost and limited current capacity should be considered before making a purchase. If your application requires a reliable, quiet, and environmentally friendly relay with a 24VDC input and a maximum current capacity of up to 2.5 Amps, this may be an excellent choice for you. If you need a relay with a higher current capacity, you might want to consider other options.

Details:

The Allen-bradley 700-HLT1Z24X is a slim line relay designed for industrial applications. Perfect for businesses and industrial settings, this Allen-bradley relay offers dependable performance durability. You are buying one but you can buy more if needed just message me. With a 24vdc coil voltage and gold contact material, this solid-state relay is suitable for interior use.

Manufactured in italy, this single-pack relay is ideal for controlling various electrical circuits with precision and reliability. This item can be shipped over-night via ups to most locations in the continental USA.

specifications genpurrelays:

• brand: Allen-bradley
• mpn: 700-hlt1z24x
• type: Slim Line Relay
• current type: Dc
• coil voltage: 24vdc
• contact material: Gold
• country/region of manufacture: Italy
• unit quantity: Five
• application: Industrial
• suitable for: Interior
